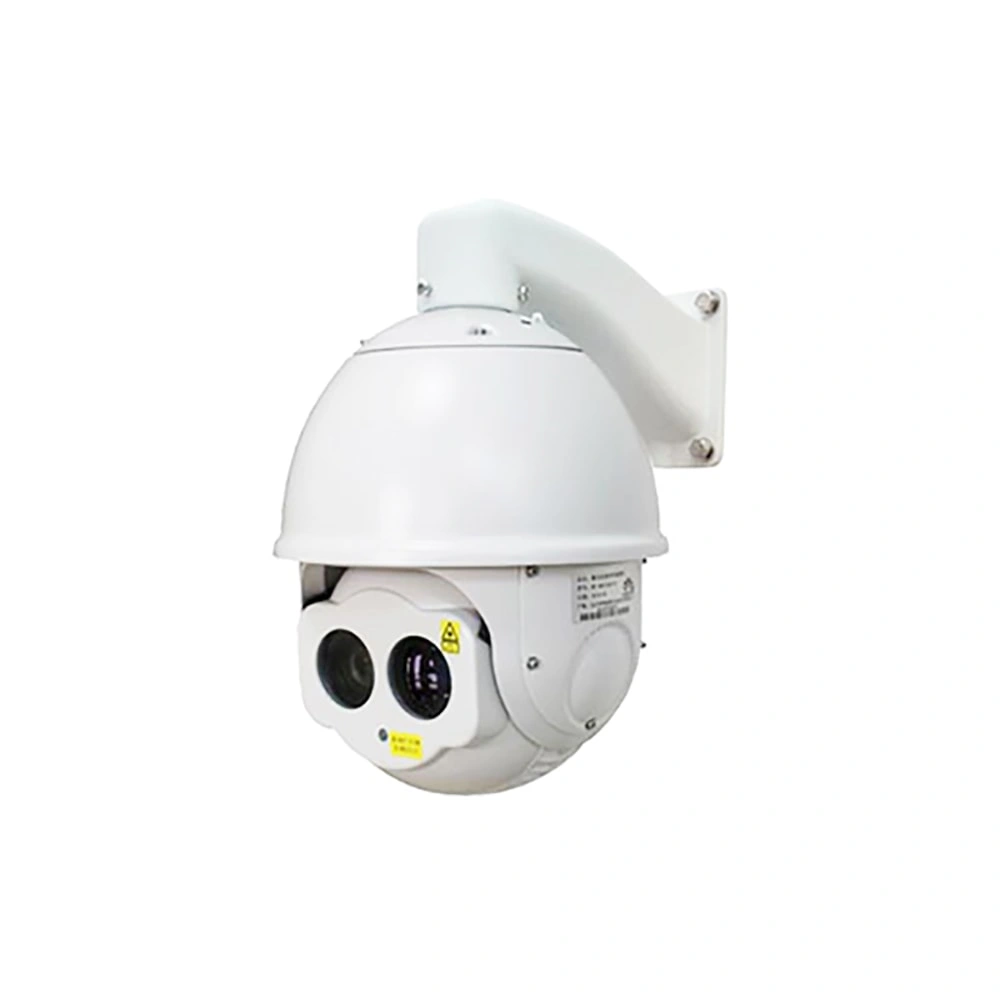

The HP-DMS15 series multi-functional miniature optoelectronic turntable is independently developed by Hepu Vision. It is an integrated optoelectronic detection and tracking system designed for air-ground integrated security in key locations such as conference centers, office buildings, prisons, and airports. It adopts multi-spectral detection modules such as high-definition visible light cameras, uncooled thermal imagers, and laser illuminators. It can be equipped with a laser ranging module and, together with intelligent target detection and tracking modules, can effectively detect, track, identify, and warn of small and medium-sized civilian consumer-grade rotorcraft, fixed-wing drones, personnel, vehicles, and ships.
| Model | YZ-BY001W | |
| Basic indicators | Optional | |
| Colors | Ice Gray | Army Green, Black, White, *Customizable |
| Rotation angle | Horizontal: 0°～360° continuous rotation Pitch: -60°～20° limited rotation |
Horizontal: 0°～≤320° limit rotation Pitch: Selectable within the range of -90°～90°, the larger the angle, the smaller the load capacity. |
| Rotation speed | Horizontal: 0.01°/s～15°/s Pitch: 0.01°/s～10°/s |
Horizontal: High speed 15°/s～30°/s selectable, the higher the speed, the lower the load. Pitch: High speed 10°/s～15°/s selectable, the higher the speed, the lower the load. |
| Preset position | 200 | *1000 |
| Positioning accuracy | ±0.1° | none |
| Power-on self-test | Power-on self-test | *No self-test |
| Angle feedback | Query feedback/Real-time feedback | Note: RS485 interface does not support real-time feedback. |
| Automatic cruise | Two routes, each with 40 patrol points. | none |
| Automatic return to position | Automatic return to position can be set from 1 to 60 minutes. | none |
| Automatic scanning | 1 | none |
| Salt spray protection | none | *No significant changes were observed on the surface after continuous spraying for 48 hours at a pH value between 6.5 and 7.2. |
| Communication Protocol | PELCO_D | PELCO_P、ModBus-RTU、*Customized Agreement |
| Baud rate | 9600bps | 2400/4800/115200 bps |
| Communication interface | RS422 | RS485/RS232/*Network interface |
| Power supply voltage | DC24V | none |
| Overall power consumption | ≤50W | Note: This will change as functional indicators change. |
| Static power consumption | ≤2W | Note: This will change as functional indicators change. |
| Operating temperature | -10℃～+55℃，Non-condensing | none |
| Storage temperature | -40℃～+65℃ | none |
| Load | 0.5kg～1kg | Note: The center of gravity is 20mm directly above the top plate. Increased speed, larger pitch angle, and higher center of gravity will all result in a corresponding decrease in load. |
| Size | 150*100*152 （L*W*Hmm） | |
| Self-respect | 2.3Kg | Note: This will change as functional indicators change. |
| Bearing method | Top load | Side load |
| Self-locking performance | Self-locking | none |
| Protection level | IP66 | none |
| Installation method | Fixed installation | *Vehicle-mounted/*Lifting/*Marine-mounted; load capacity is approximately halved when working on a vehicle or ship while in motion. |
| System type | Open-loop system | Note: No encoder |
| Upper part of the line | One straight-through signal cable (4-core) One DC 24V output power cable (2A) |
Standard power supply / Standard signal / *Gigabit Ethernet / Other Note: The upper outgoing cable is used for powering and communicating with the equipment mounted on the pan-tilt unit; the specific requirements will be determined accordingly. |
| Lower line | One direct-to-standard signal cable (4-core) One DC24V input power cable (system power supply) One RS422 cable (PTZ communication) |
Standard power supply / Standard signal / *Gigabit Ethernet / Other Note: The bottom outgoing cable is used for powering and communicating with the pan-tilt unit and the equipment mounted on it; the specific requirements will determine the outgoing cable. |
| Note: Features marked with * are items that require separate payment. | ||
The HP-DMS15 series multi-functional miniature optoelectronic turntable is independently developed by Hepu Vision. It is an integrated optoelectronic detection and tracking system designed for air-ground integrated security in key locations such as conference centers, office buildings, prisons, and airports. It adopts multi-spectral detection modules such as high-definition visible light cameras, uncooled thermal imagers, and laser illuminators. It can be equipped with a laser ranging module and, together with intelligent target detection and tracking modules, can effectively detect, track, identify, and warn of small and medium-sized civilian consumer-grade rotorcraft, fixed-wing drones, personnel, vehicles, and ships.
uildings, prisons, and airports. It adopts multi-spectral detection
uildings, prisons, and airports. It adopts multi-spectral detection
The HP-DMS15 series multi-functional miniature optoelectronic turntable is independently developed by Hepu Vision. It is an integrated optoelectronic detection and tracking system designed for air-ground integrated security in key locations such as conference centers, office buildings, prisons, and airports. It adopts multi-spectral detection modules such as high-definition visible light cameras, uncooled thermal imagers, and laser illuminators. It can be equipped with a laser ranging module and, together with intelligent target detection and tracking modules, can effectively detect, track, identify, and warn of small and medium-sized civilian consumer-grade rotorcraft, fixed-wing drones, personnel, vehicles, and ships.

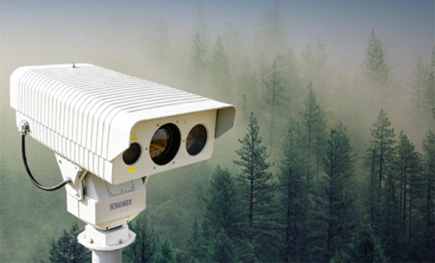

Integrates low-light high-definition visible light, high-performance uncooled/cooled thermal imaging, and servo laser illuminators. The complementary advantages of multi-spectral detection and multi-source data convergence and fusion processing ensure targets have nowhere to hide, effectively meeting users' monitoring needs under day and night, all-weather conditions.
FEP is a copolymer of TFE) and hexafluoropropylene(HFP). It has good melt flow ability and is usually processed by thermoplastic processing methods such as injection molding and extrusion.Turning speed up to 80°/s, acceleration up to 100°/s², rapid start-stop, and smooth operation, facilitating the capture and tracking of fast-moving targets.
FEP is a copolymer of TFE) and hexafluoropropylene(HFP). It has good melt flow ability and is usually processed by thermoplastic processing methods such as injection molding and extrusion.
Turning speed up to 80°/s, acceleration up to 100°/s², rapid start-stop, and smooth operation, facilitating the capture and tracking of fast-moving targets.
